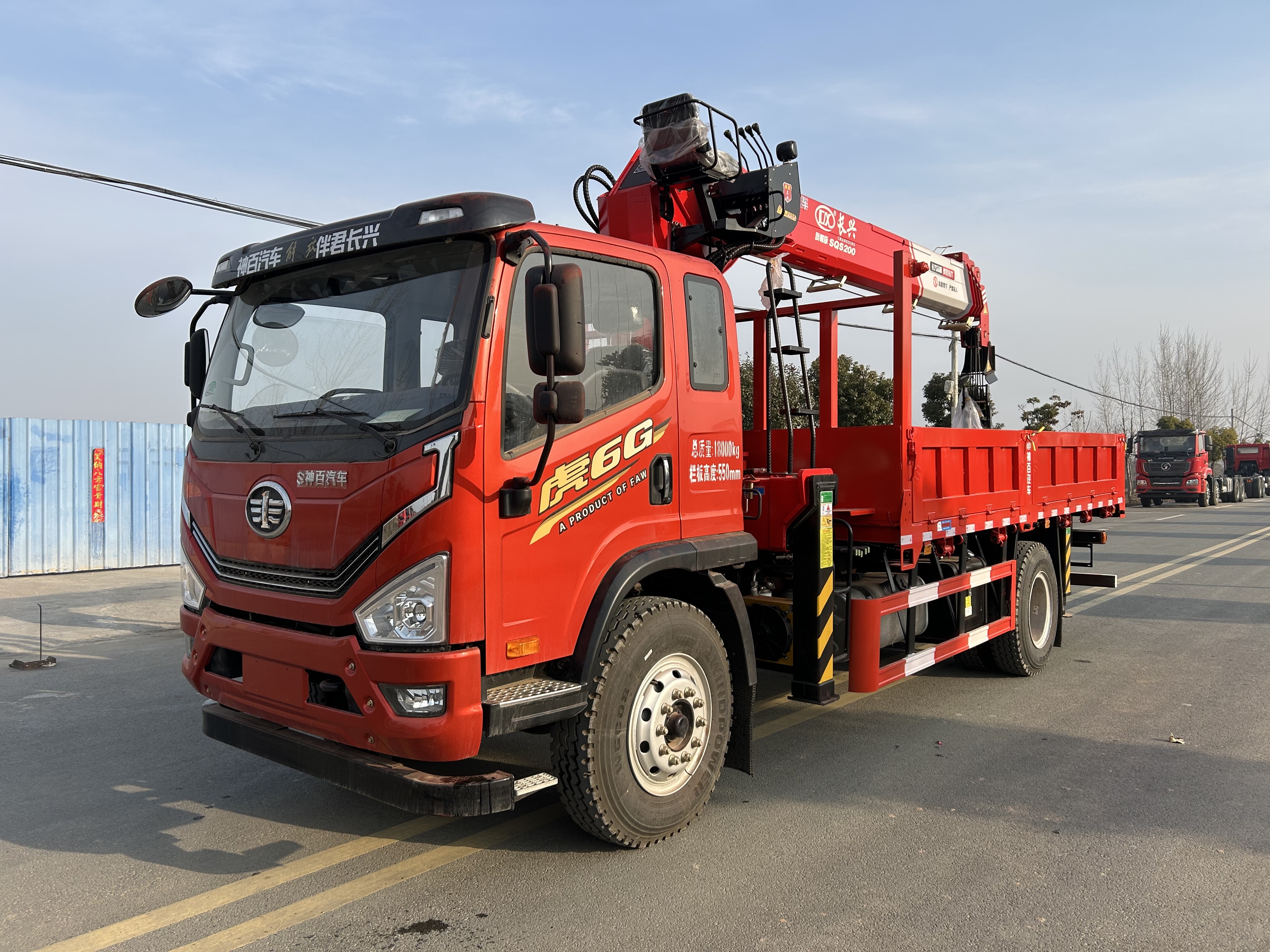

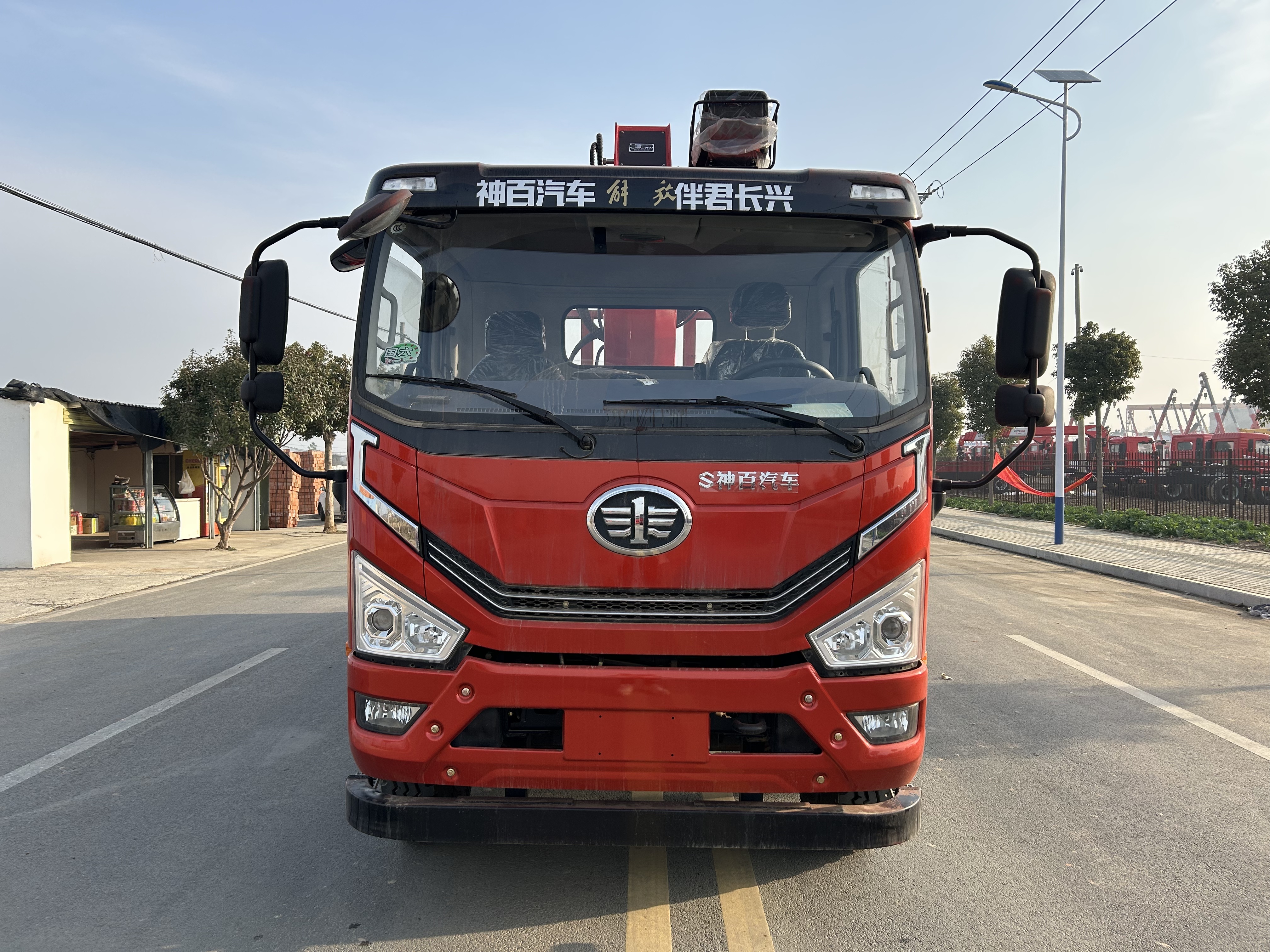

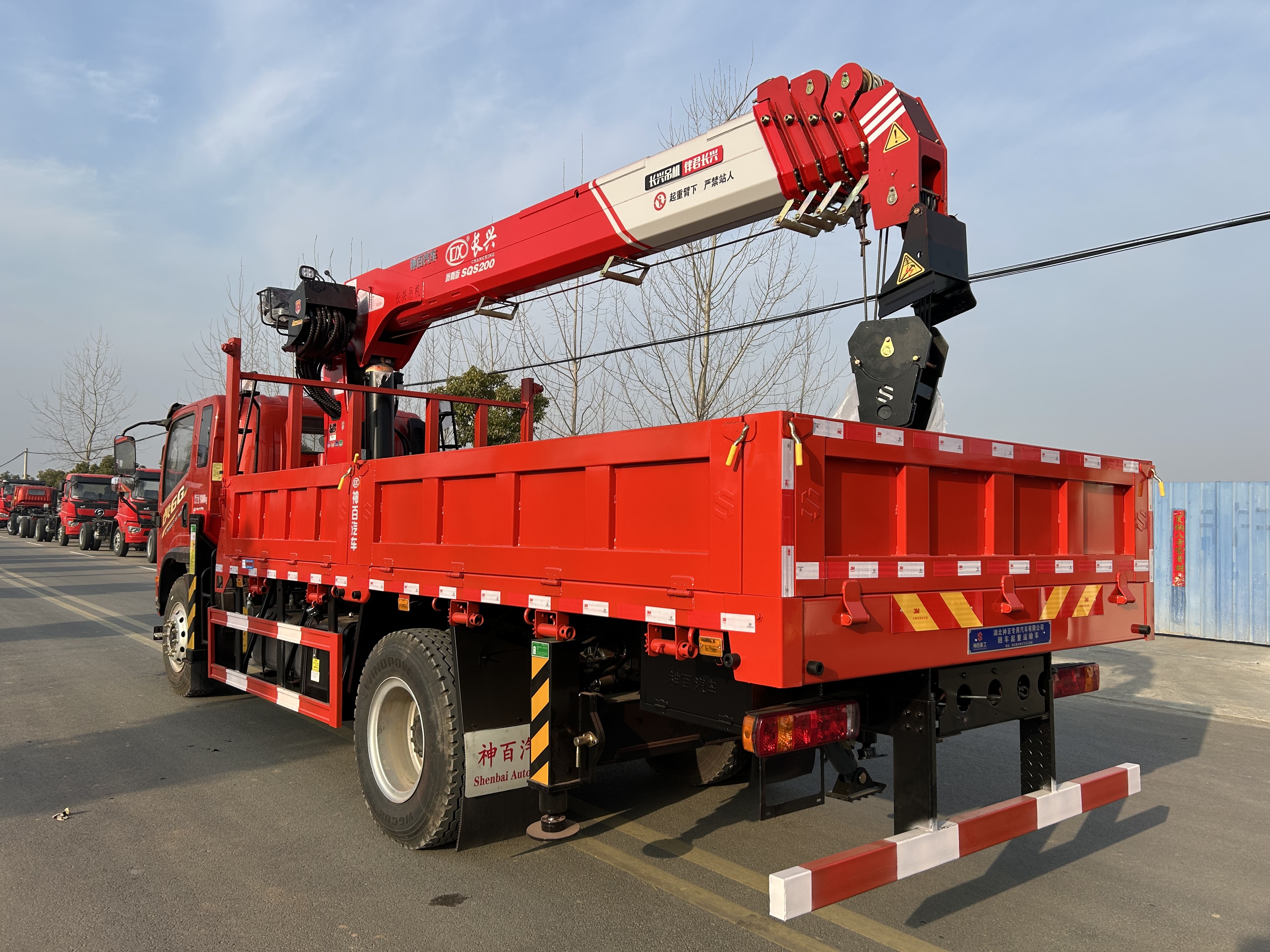

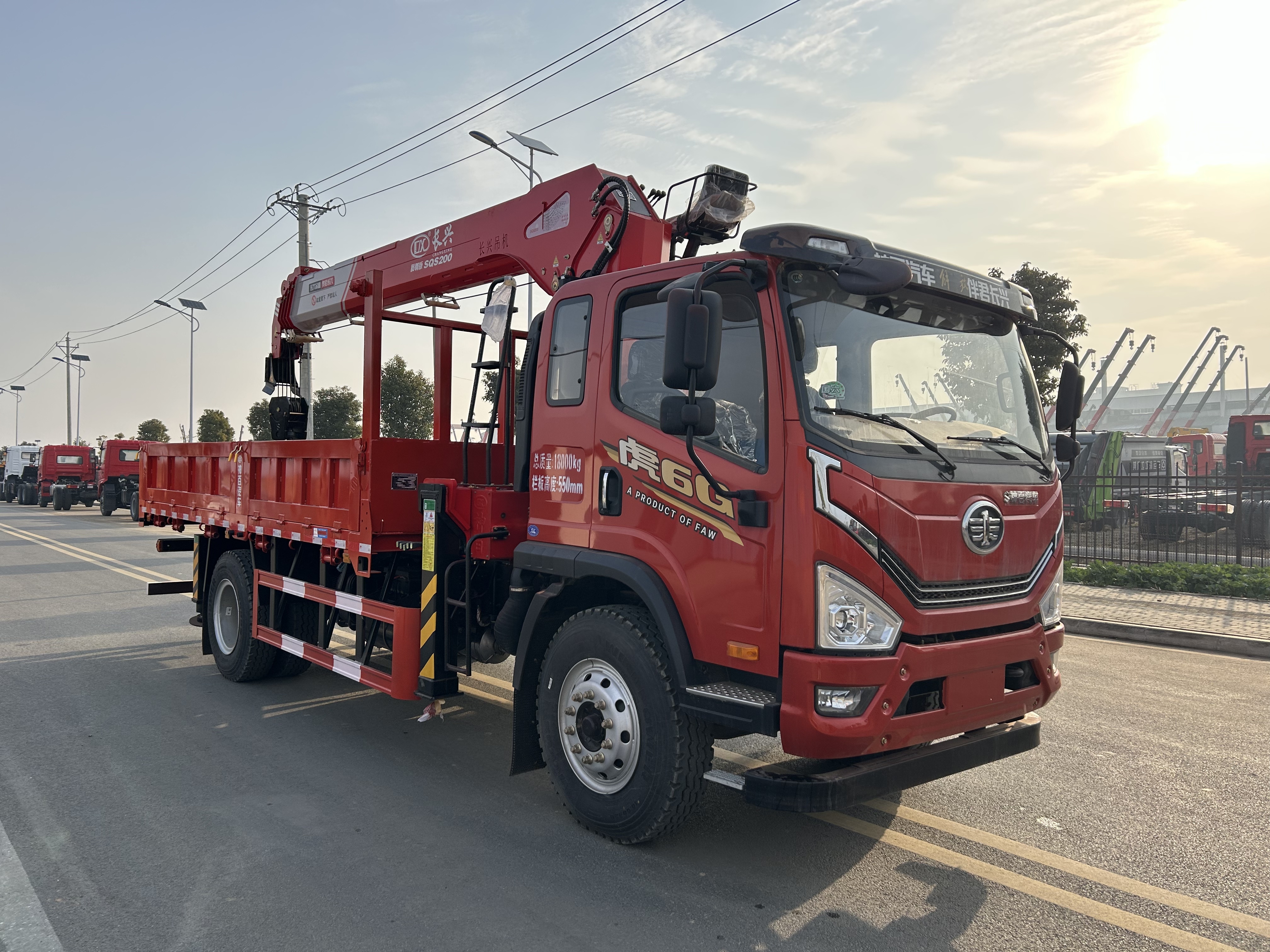

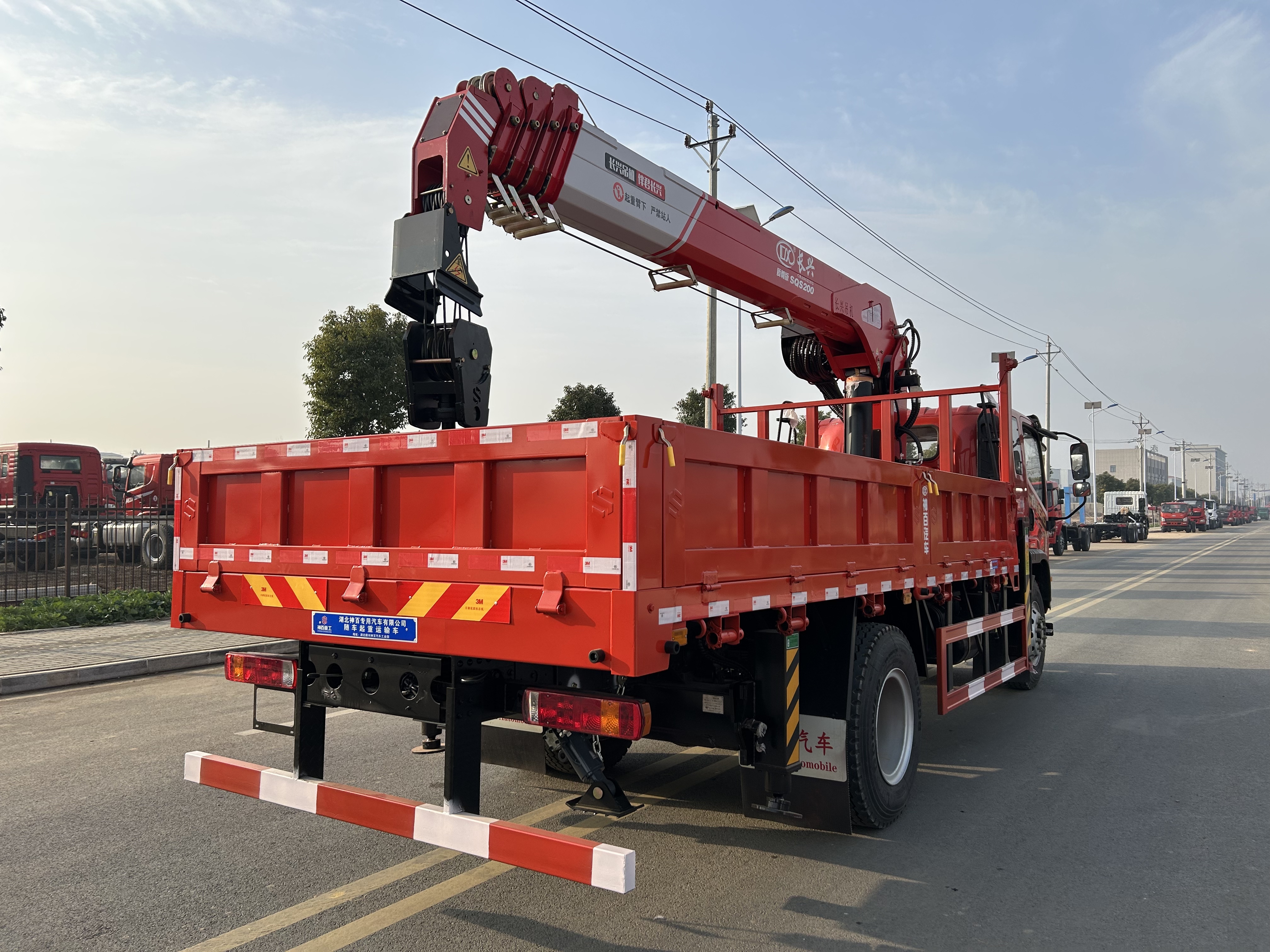

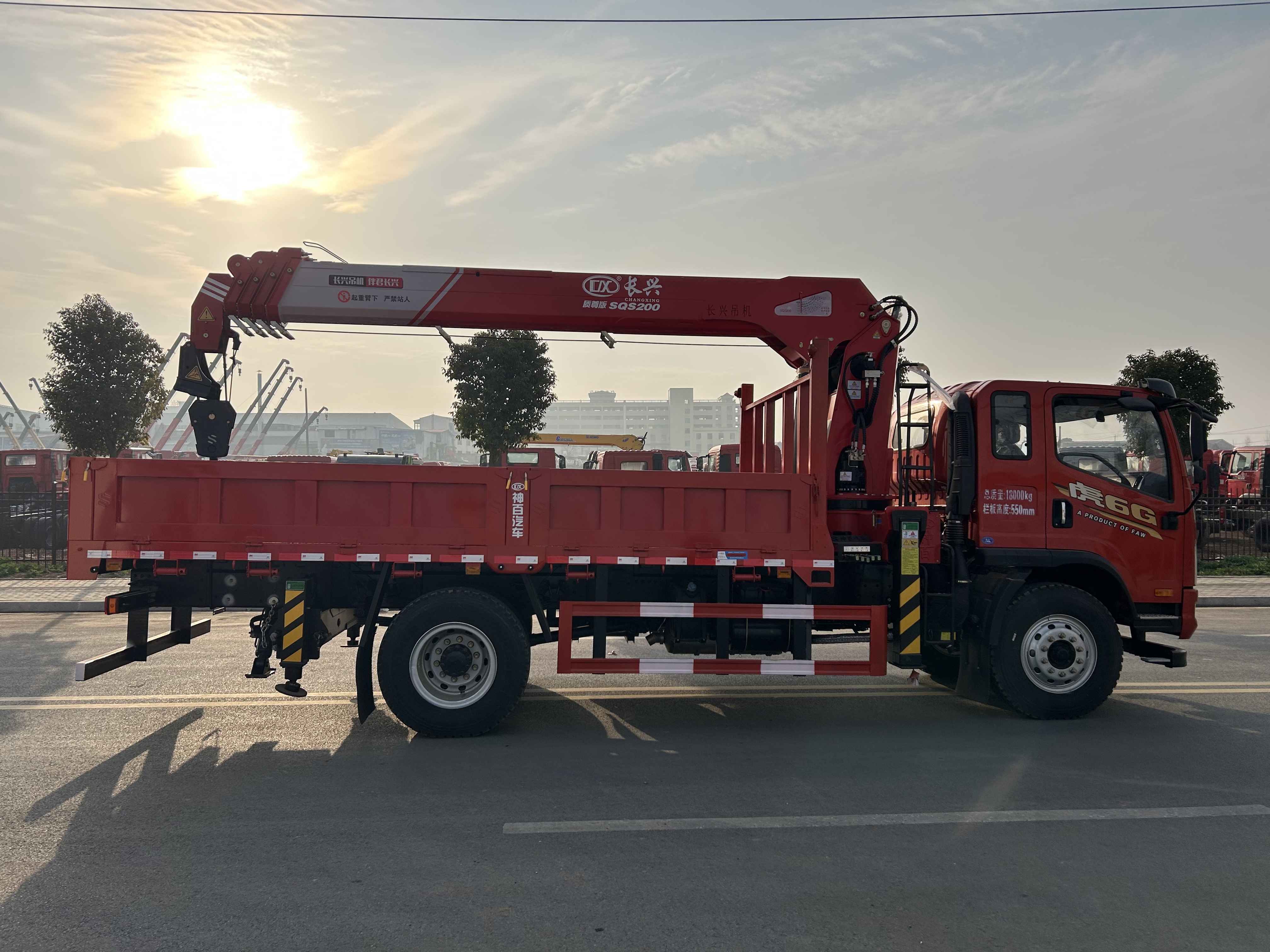

| TRUCK MOUNTED CRANE TRANSPORT VEHICLE SPECIFICATIONS | |||
| Vehicle Model | ABC5180JSQC6 | ||
| Basic Vehicle Parameters | Drive Type | 4×2 | |
| Total Weight (kg) | 18000 | ||
| Curb Weight(kg) | 12600/12000/11500/11000 | ||
| Vehicle Appearance Parameters | Length (mm) | 8280 | |
| Width (mm) | 2550 | ||
| Height (mm) | 3760 | ||
| Wheelbase (mm) | 4500 | ||
| Performance Parameters | Maximum Speed (km/h) | 89 | |
| Maximum Climbing Grade (°) | 30% | ||
| Chassis Configuration Parameters | Engine | Engine Emission Standards | Euro II, III, IV, V, VI |
| Manufacturer | Hubei Liwei | ||
| Displacement(L) | 3.6-4.2L | ||
| Rated Power (Kw) | YUCHAI 220 | ||
| Cab | Type | Single Row Flat Top Cab | |
| Standard Configuration | Bluetooth Radio, Laminated Glass, Electric Doors And Windows, Central Locking, Wide Bumper, Roof Box, LED Daytime Running Lights | ||
| Gearbox | Gearbox Type | Manual, 8 Gears | |
| Tire | Model | 10.00R20 | |
| Electrical System | System Voltage | 24V | |
| Upper Body Configuration Parameters | Maximum Lifting Mass (Kg) | 8000 | |
| Crane Brand | / | ||
| Maximum Lifting Height (M) | 18.5 | ||
| Rotation Angle (°) | 360 | ||
| Crane Weight (Kg) | 4600 | ||
| Leg Type | Double-cavity square legs | ||
| Leg Span (M) | 7.5 | ||
| Box body | Size | 5100*2450*550 | |
| Other Configuration | Triangular Warning Sign, Tool Kit, Spare Tire At The Rear Of The Frame, ABS, Air Conditioning, And Front Lower P | ||
Functional Role for Heavy Load Handling Professionals
This truck-mounted crane serves as a specialized transport vehicle designed for industries requiring mobile lifting capabilities. Target users include construction firms, infrastructure contractors, and industrial facility maintenance teams who benefit from the integration of a robust Truck crane onto a truck chassis. Its mobility combined with lifting functionality enables on-site loading, unloading, and precise positioning of heavy loads without reliance on separate equipment. Organizations seeking efficiency in material handling and transport find this product indispensable for diverse operational demands spanning multiple sectors.
Measurable Performance and Engineering Specifications
Equipped with a 4x2 drive chassis, this crane for truck bed achieves a balance between mobility and lifting power, featuring a maximum lifting mass of 8,000 kg and a lifting height of up to 18.5 meters. The crane’s 360-degree rotation enhances operational flexibility, while its double-cavity square outriggers spanning 7.5 meters ensure stability under load. Running on a YUCHAI engine delivering 220 kW compliant with Euro II to Euro VI standards, the vehicle offers reliable power and emission compliance. The cube-shaped box body (5100 x 2450 x 550 mm) provides secure payload space, complementing the single-row flat-top cab designed for operator efficiency during prolonged use.
Sector Applications and Integration Advantages
This truck-mounted crane proves valuable across construction, infrastructure development, and industrial maintenance. Its capacity for lifting steel beams, utility poles, and heavy equipment streamlines workflows by combining transport and crane functions into a single asset. Its compliance with varied emission standards supports environmental regulations worldwide, aiding fleet managers in meeting requirements. By integrating seamlessly into existing logistics and job site systems, this solution supports operational continuity, reduces equipment redundancy, and optimizes return on investment for companies relying on versatile small truck crane technology.
Product Advantages
Structural and Design Integration Benefits
The vehicle features a robust modular design marrying the truck chassis and crane components into a cohesive system. The use of double-cavity square outriggers and a 360-degree rotatable crane arm ensures maximum stability and flexibility during load manipulation. The structural design supports varying curb weights and configurations to suit different load requirements, providing clients with tailored solutions. Additionally, the compact single-row flat-top cab optimizes space usage without compromising operator comfort, while confirming the product’s place among leading truck crane manufacturers prioritizing functionally integrated designs.
Operational Performance and User-Centered Utility
From the operator’s perspective, the truck crane delivers exceptional performance with precise load handling and easy maneuverability enabled by its 4x2 drive and well-calibrated controls. Its powertrain’s compliance with multiple Euro emission standards reduces environmental impact and regulatory risks. The lifting system’s 8,000 kg capacity paired with an 18.5-meter reach enables effective handling of diverse heavy loads in constrained workspaces. These attributes maximize uptime and reduce downtime related to equipment switching, improving operational efficiency and providing end users with a reliable and versatile small truck crane engineered for demanding tasks.
Use Scenarios
Application in Construction Site Material Handling
Within construction sites, this truck-mounted crane plays a critical role in the lifting and positioning of structural steel beams and equipment needed for assembly or installation. Working in environments where mobility and load capacity are paramount, the crane’s 360-degree rotation capability allows precise placement even in restricted spaces. Its robust double-cavity square legs provide essential stability on uneven terrain, while the 4x2 chassis ensures dependable transport between multiple job sites. This integration supports construction project timelines by reducing the reliance on separate cranes, ensuring safe and compliant lifting operations under stringent industry safety protocols.
Role in Infrastructure Maintenance and Utility Installation
In infrastructure maintenance and urban utility installation, this truck crane facilitates the positioning of utility poles, street furniture, and large equipment with high accuracy and efficiency. Its adaptable design meets the demands of field technicians and contractors who require both transport and lifting solutions on-site. Compliance with Euro II through VI emission standards ensures the unit is suitable for urban environments with strict pollution controls. The crane’s operational capacity combined with a practical box body enhances equipment storage and deployment speed, allowing teams to optimize workflow and maintain regulatory compliance during critical maintenance or installation operations.
We are a special-purpose vehicle manufacturer specializing in tank trucks, sanitation trucks, dump trucks, tractors, refrigerated trucks, sprinkler trucks, fire trucks, truck cranes, road rescue vehicles, and garbage transfer trucks. Our products are sold to 90 countries and regions worldwide. We focus on providing customers with personalized vehicle customization solutions and establishing long-term, stable cooperative relationships. Contact us now for your custom quote!
What configurations are available for the truck-mounted crane’s chassis and crane?
The truck-mounted crane offers multiple curb weight configurations (11,000 to 12,600 kg) and engine standards from Euro II to Euro VI, allowing clients to tailor the vehicle specifications. This flexibility ensures the Truck crane meets diverse operational needs across industries.
What safety features are integrated into the truck crane system?
Safety is ensured through double-cavity square stabilizing legs spanning 7.5 meters, a robust ABS system, and a 24V electrical system. These features provide stability during lifting and enhance operational reliability for the Truck crane in varying field conditions.
Can the truck-mounted crane be used for heavy industrial equipment installation?
Yes, the crane’s maximum lifting mass of 8,000 kg and 18.5-meter height make it suitable for positioning large components in industrial facilities. Its 360-degree rotation capability supports precise placement, ideal for heavy equipment handling on-site.
What maintenance practices are recommended for the truck-mounted crane to ensure durability?
Regular inspections of hydraulic, mechanical, and electrical systems are essential. Following manufacturer maintenance guidelines and conducting periodic load testing support safe operation and long service life for this crane for truck bed applications.
